Typically a host is attached directly to one router, the default router for the host (aka. first-hop router). We refer to the default router of the source host as the source router and of the destination as destination router.

The purpose of a routing algorithm is then simple: given a set of routers, with links connecting the routers, a routing algorithm finds a “good” path from source to destination router.

Classifying routing algorithms:

1. Whether they are global or decentralised:

   1. global: computes the least-cost path between a source and destination using complete, global knowledge about the network. These algorithms are often referred to as link-state algorithms

   2. decentralised: the calculation of the least-cost path is carried out in an iterative, distributed manner. These algorithms are often referred to as distance-vector algorithms

      Each node begins with its local information and iteratively by sharing the information with the neighbouring nodes, a node gradually calculates the least-cost path to other nodes.

2. Whether they are static or dynamic

   1. static algorithms: routes change very slowly over time often as a result of human intervention.

   2. dynamic algorithms: change the routing as the network traffic loads or topology changes.

Link-State Routing Algorithm:

The network topology and all link costs are available as input to the $\texttt{LS}$ algorithm.

This is accomplished by having each node broadcast link-state packets to all other nodes in the network, with each link-state packet containing the identities and costs of its attached links.

The result of the broadcasting is that all nodes have an identical and complete view of the network. Each node can then run the $\texttt{LS}$ algorithm and compute the same set of least-cost paths as every other node. In practice this is accomplished using a link-state broadcast algorithm.

The result of the broadcast is that all nodes have an identical complete view of the network. Each node can then run the LS algorithm and compute the least cost paths from the current node to all other nodes in the network.

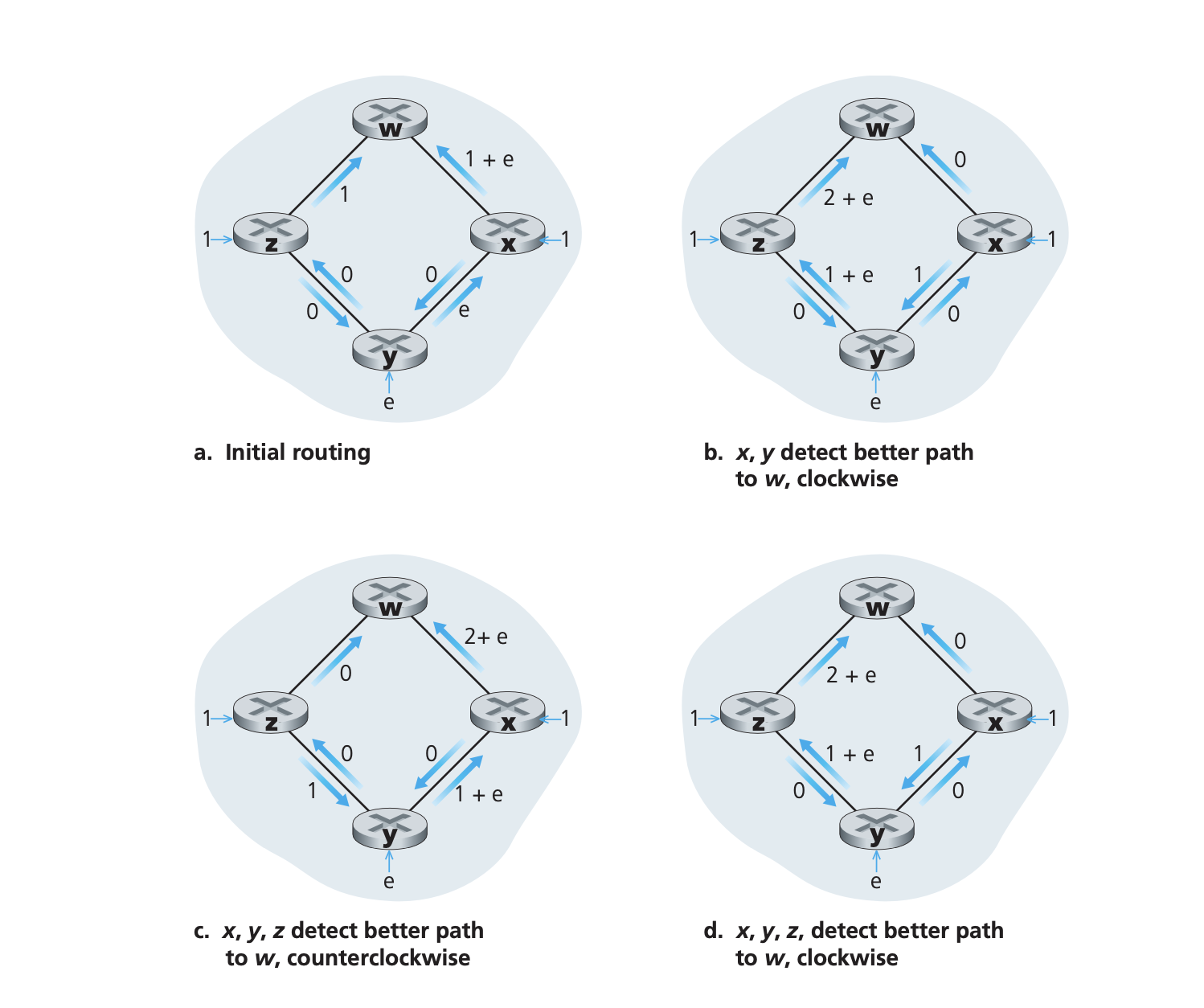

Problem:

One case to consider is when link costs are equal to the load carried on the link (ex. delay). In this case the link costs may not be symmetric, i.e. $c(x, y) \neq c(y, x)$. In the above example the paths are oscillating from clockwise paths to counter-clockwise paths after every iteration of shortest paths calculation. To prevent such oscillations one solution would be to ensure that not all routers run the LS algorithm at the same time.

Distance-Vector Routing Algorithm:

The distance vector algorithm is

1. Distributed: Each node receives some information from one or more of its directly attached neighbours, performs a calculation and distributes the result back to its neighbours.
2. Iterative: process continues until no more information is exchanged between neighbors
3. Asynchronous: Does not require all of the nodes to operate in lockstep with each other.

Bellman-Ford Equation:

After travelling from $x$ to $v$, if we then take the least-cost path from $v$ to $y$, the path cost will be $c(x, v) + d_{v}(y)$.

Since we must begin by travelling to some neighbour $v$, the least cost from $x$ to $y$ is the minimum of the above equation taken over all neighbours.

Bellman-Ford equation has a significant practical importance. In particular, the solution to the Bellman-Form equation provides the entries in node $x$’s forwarding table.

In $\texttt{DV}$ algorithm, each node $x$ maintains the following routing information:

1. For each neighbour $v$, the cost $c(x, v)$ from $x$ to directly attached neighbour $v$
2. Distance vector $D_{x} = [D_{x}(y) \mid \forall y \in N]$
3. The distance vector of each of its neighbours

In the distributed, asynchronous algorithm, from time to time, each node sends a copy of its $\texttt{DV}$ to each of its neighbours. When a node $x$ receives a new distance vector from any of its neighbours $v$, it uses it to update its own distance vector using the Bellman-Form equation.

If its own distance vector gets updated then it will send its updated distance vector to each of its neighbours.

Link Cost Changes and Link Failure:

The decreased link cost between nodes propagates quickly through the network. However, when the link cost increases we encounter the count-to-infinity problem.

Hierarchical routing:

We have studied the network as a collection of interconnected routers. This model and its view of homogeneous set of routers all executing the same routing algorithm is a bit simplistic for at least two reasons:

1. Scale: As the number of routers becomes large, the overhead involved in computing storing and communicating routing information becomes prohibitive

2. Administrative Autonomy: Ideally, an organisation should be able to run and administer its network as it wishes, while still being able to connect it network to other outside networks.

These problems can be solved by organising routers into autonomous systems (AS), with each AS consisting of a group of routers that are typically under the same administrative control.

The routing algorithm running within an autonomous system is called INTRA-autonomous system routing protocol. One of the routers in AS has the additional task of forwarding packets to destinations outside AS; these routers are called gateway routers.

How does a router within some AS know how to route a packet to a destination that is outside the AS?

The problem of knowing where to forward the packet becomes significantly more challenging when there are multiple gateway routers. We need to know which destinations are reachable by each AS’s, reachable by each gateway router. We also need to propagate this information to all routers within the AS. These tasks are handled by the INTER-autonomous system routing protocol.

Thus, each router receives information from both inter and intra protocols, and uses this information to configure its forwarding table.

Suppose, there is a case where the destination is reachable by two different gateways in the AS. How would then we decide which gateway router to route the packet from? We use hot-potato routing. The packet will be routed from the gateway that has the least-cost path from the source router.

Routing in the Internet:

Intra-AS routing in the Internet:

Intra-AS routing protocols are also known as interior gateway protocols. Two protocols have been used extensively for routing within an AS in the internet:

• Routing Information Protocol (RIP)
• Open Shortest Path First (OSPF)

RIP - Routing Information Protocol:

RIP is a distance-vector protocol. The RIP specified in RFC 1058 uses hop count as a cost metric.

In RIP (and also in OSPF) costs are actually from source router to a destination subnet. RIP uses the term hop, which is the number of subnets traversed along the shortest path from source router to a destination subnet, including the destination subnet.

Note

The maximum cost of the path is limited to 15. Thus limiting the use of RIP to AS that are fewer than 15 hops in diameter.

The distance vector for any one router is the current estimate of the shortest path distances from the router to the subnets in the AS. In RIP routing updates are called RIP response message/ RIP advertisements.

Each router maintains a RIP table known as the routing table which contains both the routers distance vector and its forwarding table.

RIP advertisements are sent after every 30s. If a router has not heard from neighbour at least once every 180s, that neighbour is considered to be no longer reachable; RIP then updates the routing information and sends advertisements.

Note

Each advertisement can list only up to 25 destination networks within AS

A router can also request information about its neighbours cost to a given destination using RIP request message. RIP messages uses UDP. UDP segments are carried between routers in standard IP datagram.

RIP uses transport layer protocol UDP on top of network layer protocol IP to implement network layer functionality.

OSPF - Open Shortest Path First

OSPF and IS-IS protocols are typically deployed in top-tier ISPs whereas RIP is deployed in lower tier ISPs and enterprise networks.

OSPF is a link-state protocol. A router constructs a complete topological map (that is, a graph) of the entire autonomous system. The router then locally runs Dijkstra’s shortest-path algorithm to determine a shortest-path tree to all subnets.

With OSPF, a router broadcasts routing information to all other routers in the AS. A router broadcasts link state information whenever there is a change in a links state information and also periodically at least once every 30s.

Neighbour Discovery and Maintenance: HELLO Protocol

• Ensures bidirectional communication between neighbours
• Ensures that neighbours agree on parameters (HELLO Interval, etc)

Note

OSPF requires bi-directional communication and wont work for uni-directional links

How?

• HELLO packets send to a fixed well-known multicast address
• Periodic HELLOs

OSPF Packets Packets are directly sent to neighbours (TTL=1) using multicast address;

Five packet types:

1. HELLO
2. Database Description
3. LS Request
4. LS Update
5. LS ACK

Link State Database

• Consists of Link State
• LSA: Data unit describing local state of a network/router
• Must be kept synchronised to react to routing failures

Database Synchronisation: All routers need to have identical databases

How to check if the database are consistent?

• Have the same #LSA entries
• Have the same sum for checksum

Two types of synchronisation:

1. Initial Sync: After HELLO explicitly transfer the database

   • Database Description packets are sent one at a time between neighbours
   • Determine Master/Slave for DD exchange
   • Determine which LSAs are missing in own DB
   • Request those via LS Request
   • Neighbour sends these in LS Update packets

2. Continuous Synchronisation: Reliable Flooding

   • Flood the LS Update packet to all the neighbours except the one it received the update from
   • Same copy of LSA is an implicit ACK
   • Use delayed ACKs
   • All LSAs must be acknowledge either implicitly or explicitly.

Some of the advanced features in OSPF:

1. Security: Exchanges between OSPF routers can be authenticated. Only trusted routers can participate in the OSPF protocol within an AS.

2. Multiple same cost paths: When multiple paths to a destination have the same cost, OSPF allows multiple paths to be used.

3. Integrated support for unicast and multicast routing: Multicast OSPF provides simple extension to OSPF providing multicast routing.

4. Support for hierarchy within a single routing domain: the most significant advantage in OSPF is the ability to structure an AS hierarchically.

Inter-AS Routing: BGP

BGP - Border Gateway Protocol is the de-facto standard inter-AS routing protocol. As an inter-AS routing protocol BGP provides each AS a means to

1. Obtain subnet reachability information from neighbouring ASs
2. Propagate the reachability information to all routers internal to the AS.
3. Determine “good” routes to subnets based on the reachability information and on AS policy

Neighbour Discovery and Maintenance:

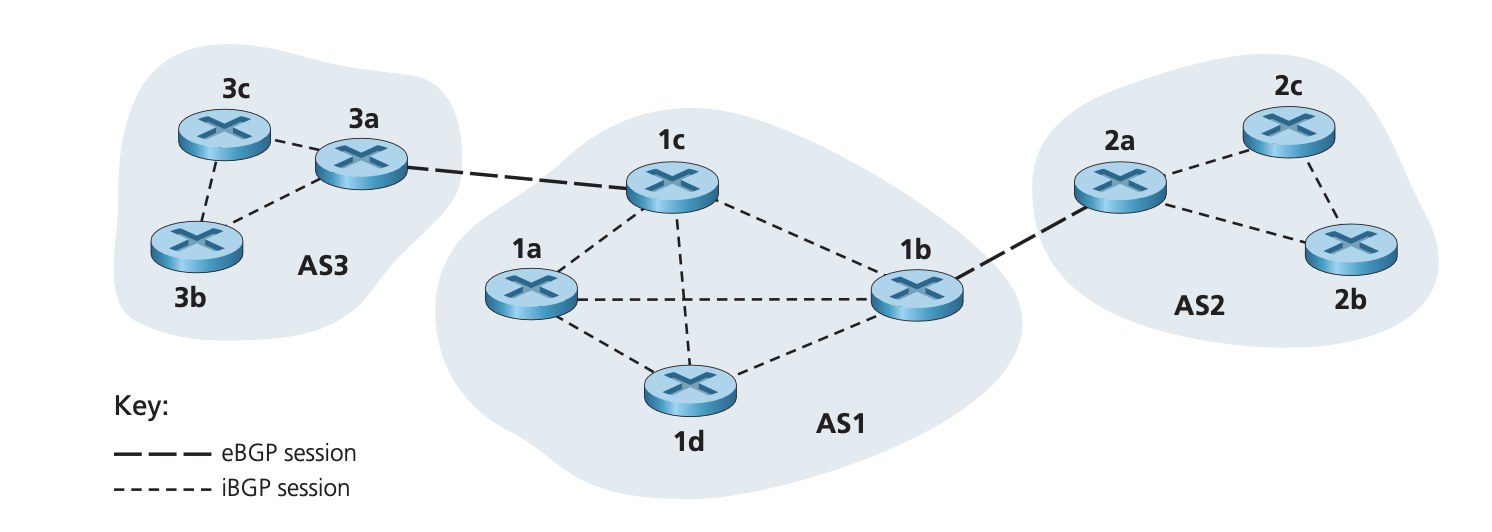

In BGP, pairs of routers called BGP peers exchange routing information over semipermanent TCP connections called BGP sessions.

a BGP session that spans two ASs is called an external BGP (eBGP) session, and a BGP session between routers in the same AS is called an internal BGP (iBGP) session.

BGP allows each AS to learn which destinations are reachable via its neighbouring ASs. In BGP, destinations are not hosts but instead are CIDRized prefixes, with each prefix representing a subnet or a collection of subnets.

How BGP distribute prefix reachability information over the BGP sessions?

• the eBGP session is used to exchange prefix reachability information between ASs.
• When a gateway router in any AS receives eBGP-learned prefixes, the gateway router uses iBGP sessions to distribute the prefixes to the other routers in the AS.
• Thus, all the routers in AS learn about the prefixes reachable from some another AS.

Path Attributes and BGP Routes:

In BGP, an autonomous system is identified by its globally unique autonomous system number (ASN).

When a router advertises a prefix across a BGP session, it includes with the prefix a number of BGP attributes. In BGP jargon, a prefix along with its attributes is called a route. Thus a BGP route = Network Prefix + Attributes

Some of the important attributes are:

AS-PATH:

The attribute contains the ASs through which the advertisement for the prefix has passed. When a prefix is passed into an AS, the AS adds its ASN to the AS-PATH attribute.

Routers use the AS-PATH attribute to detect and prevent looping advertisements; specifically, if a router sees that its AS is contained in the path list, it will reject the advertisement.

NEXT-HOP:

The NEXT-HOP is the router interface that begins the AS-PATH. It is the IP address of the router interface. In essence the NEXT-HOP attribute is used by routers to properly configure their forwarding tables.

Origin:

Multiple Exit Discriminator:

Which interface to chose if we get two equally “best” AS-PATH for the same AS. (Refer BGP Route Selection for better understanding)

• Non transitive: apply only to the immediate neighbours
• Used to convey the relative preferences for entry points
• Influences best path selection
• Comparable if paths are from the same AS
• IGP metric can be conveyed as MED

Local Preference:

• Allows providers to prefer routes
• Path with the highest local preference wins

Community:

Used to group prefixes and influence routing decisions.

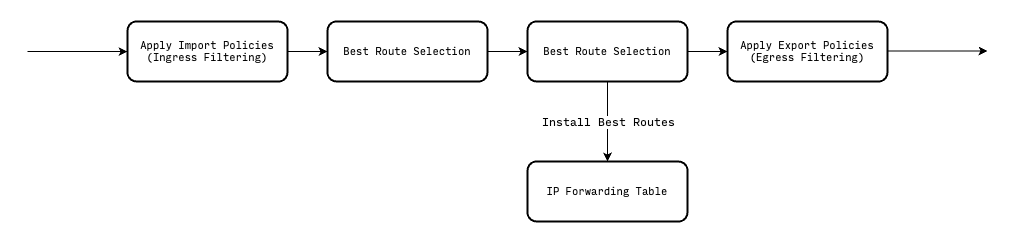

BGP Route Selection

When a gateway router receives a route advertisement, it uses its import policy to decide whether

• to accept or filter the route and
• whether to set certain attributes such as the router preference metrics. The import policy may filter a route because the AS may not want to send traffic over one of the ASs in the route’s AS-PATH.

Router must learn more than one route to some prefix to make a decision which one is better.

The following elimination rules are used to select the “best route”:

• Local Preference attribute: Policy decision
• Shortest AS-PATH
• Best MED
• Closest NEXT-HOP router: Hot Potato routing
• Additional Criteria
• IP Address of peer

BGP does not load balance traffic. It chooses and installs a single “best” route.

Routing Policies:

BGP provides capabilities for enforcing various policies. Policies are used to configure BGP and reflects the goals of the network provider. These goals include

• Which routes to accept from other ASs
• How to propagate routes through the network etc.

BGP enforces policies by

• Choosing paths from multiple alternatives
• Controlling advertisements to other ASs

AS Type and policies

• Providers: Offer connectivity to direct customer, offer transmit to other ISPs
• Customer: Buy connectivity from providers
• Peers: Exchange customer traffic at no cost
• Siblings: Others

iBGP:

• Same routing protocol as BGP
• Should be used when the AS_PATH information must remain intact between multiple eBGP peers
• All iBGP peers must be fully meshed logically. an iBGP peer will not advertise a route learned by one iBGP peer to another iBGP peer. This is to prevent looping
